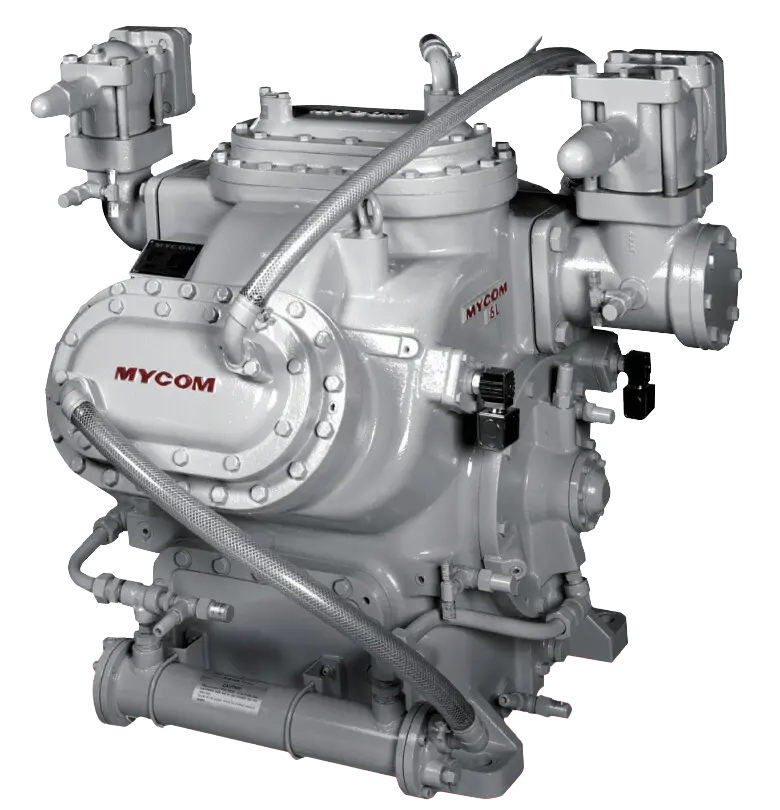

Compressor - L Type

Compressor - L Type

https://sesora.co.jp/web/image/product.template/321/image_1920?unique=7d61247

Resiprocating/Piston Compressor

Item 4L 6L 8L
Refrigerant Ammonia
Compressor type Reciprocating, Open Type
Number of cylinders 4 6 8
Bore (mm) 115
Stroke (mm) 90
Displacement (m³/h)* 218 326 435
Rotation speed (rpm) 1000–1800
Drive method Direct drive / V-belt
Capacity control (%) 100/50 100/66/33 100/75/50/25

*1. Specify the refrigerant by adding a prefix "N" for Ammonia to the type code.
*2. Displacement at 970 rpm.

L-Series Compressors

L-series compressors are specifically designed for ammonia refrigeration and are adaptable to wide operating ranges, suitable for smaller load requirements in refrigeration and freezing applications on land.
