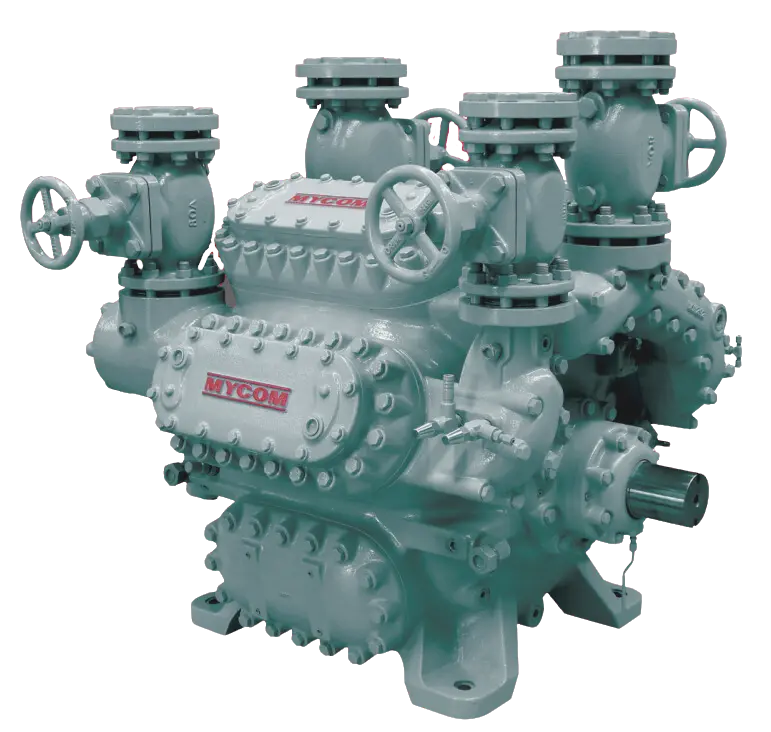

Compressor - M Type

Resiprocating/Piston Compressor

Item	2M II	4M II	6M II	8M II
Refrigerant	Ammonia / Propane / HFCs (R134a, R404A, R507A)
Compressor type	Reciprocating, Open Type
Number of cylinders	2	4	6	8
Bore (mm)	146
Stroke (mm)	106
Displacement (m³/h)*	207	413	620	826
Rotation speed (rpm)	600–1500*³	800–1500*³	660–1500*³	660–1500*³
Water cooled type (Ammonia)
Air cooled type (Ammonia): 600–1200*³
Drive method	Direct drive / V-belt
Capacity control (%)	100/50	100/50	100/66/33	100/75/50/25

Item	2M II	4M II	6M II	8M II
Refrigerant	Ammonia / Propane / HFCs (R134a, R404A, R507A)
Compressor type	Reciprocating, Open Type
Number of cylinders	2	4	6	8
Bore (mm)	146
Stroke (mm)	106
Displacement (m³/h)*	207	413	620	826
Rotation speed (rpm)	600–1500*³	800–1500*³	660–1500*³	660–1500*³
	Water cooled type (Ammonia)
	Air cooled type (Ammonia): 600–1200*³
Drive method	Direct drive / V-belt
Capacity control (%)	100/50	100/50	100/66/33	100/75/50/25

*1. Specify the refrigerant by adding a prefix to the type code (N = Ammonia / P = Propane / F = Fluorocarbons).
*2. Displacement at 970 rpm.
*3. The range of rotation speed varies according to the operating conditions. Please refer to the ranges of use stated in the operating instructions.
